| Product Attribute | Attribute Value |
|---|---|
| Agency Approvals | CSA, UL, TUV |
| Alternate Mfr Part Number | 43640-0201 |
| Angle | Straight |
| Color | Black |
| Family Name | Micro-Fit 3.0 |
| Gender | Plug |
| Housing Material | Polyester |
| Length, Overall | 0.551 " |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Operating Temperature | -40 to 105 °C |
| Pin Spacing | 0.118 " |
| Pitch | 3.00 mm (0.118") |
| Primary Type | Soft Shell |

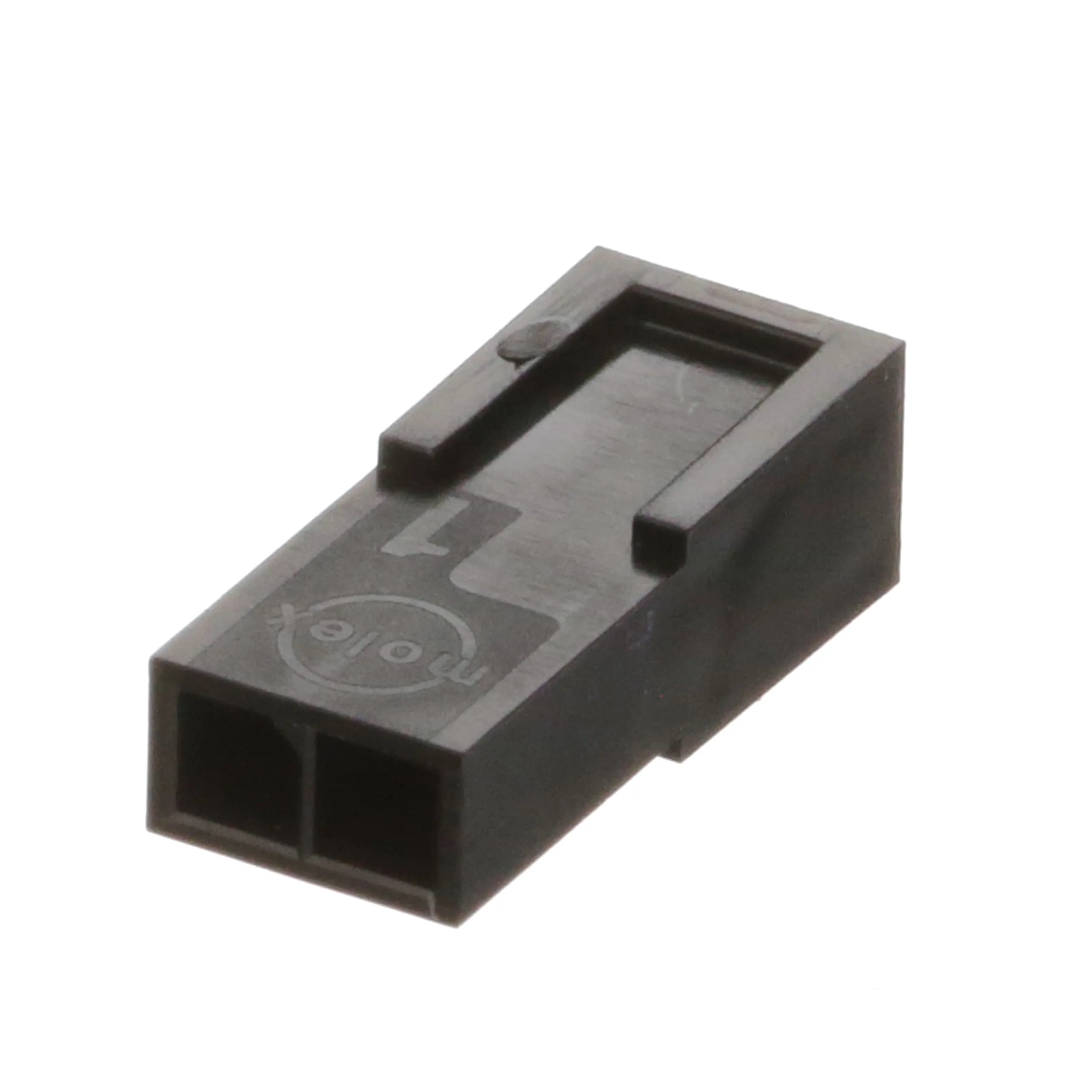

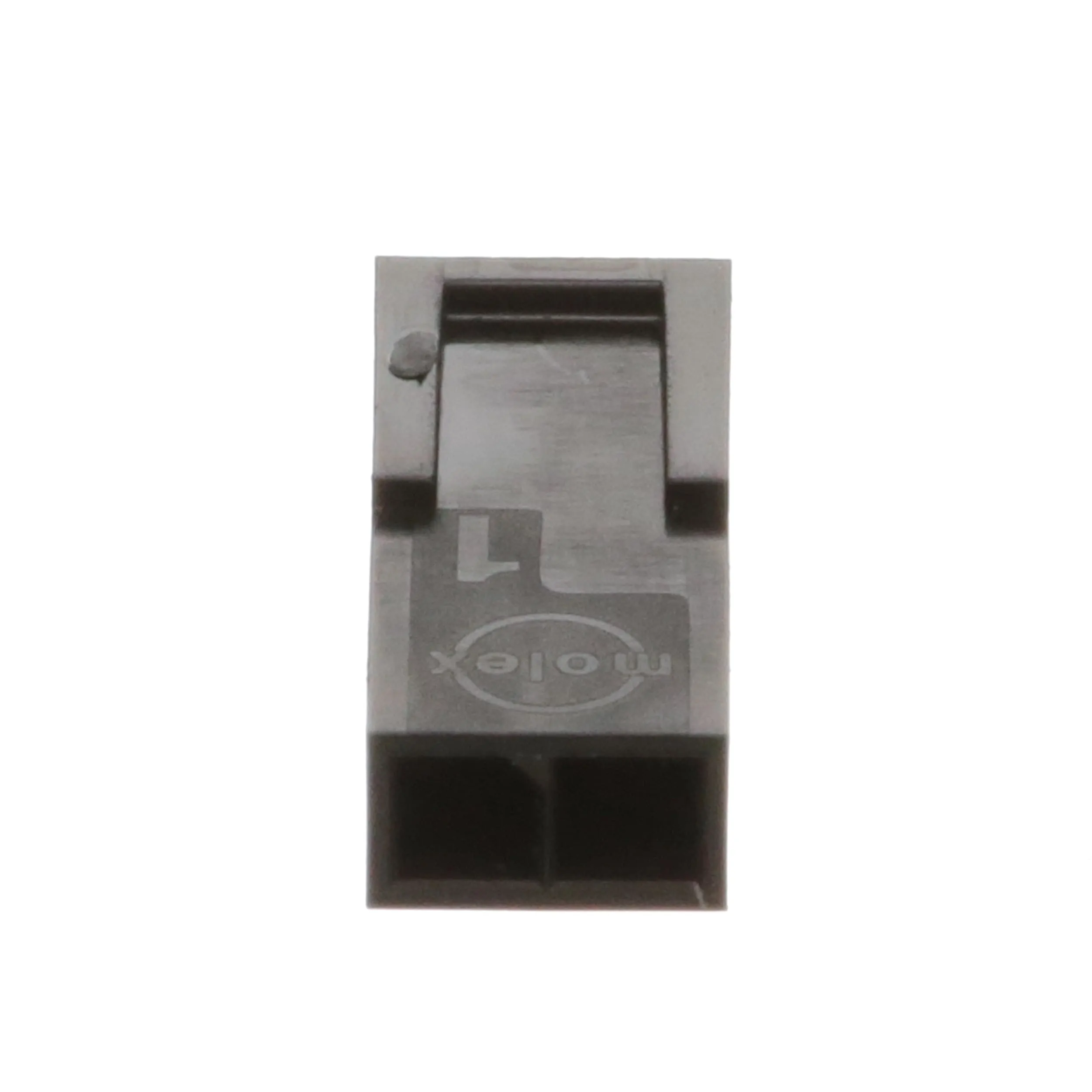

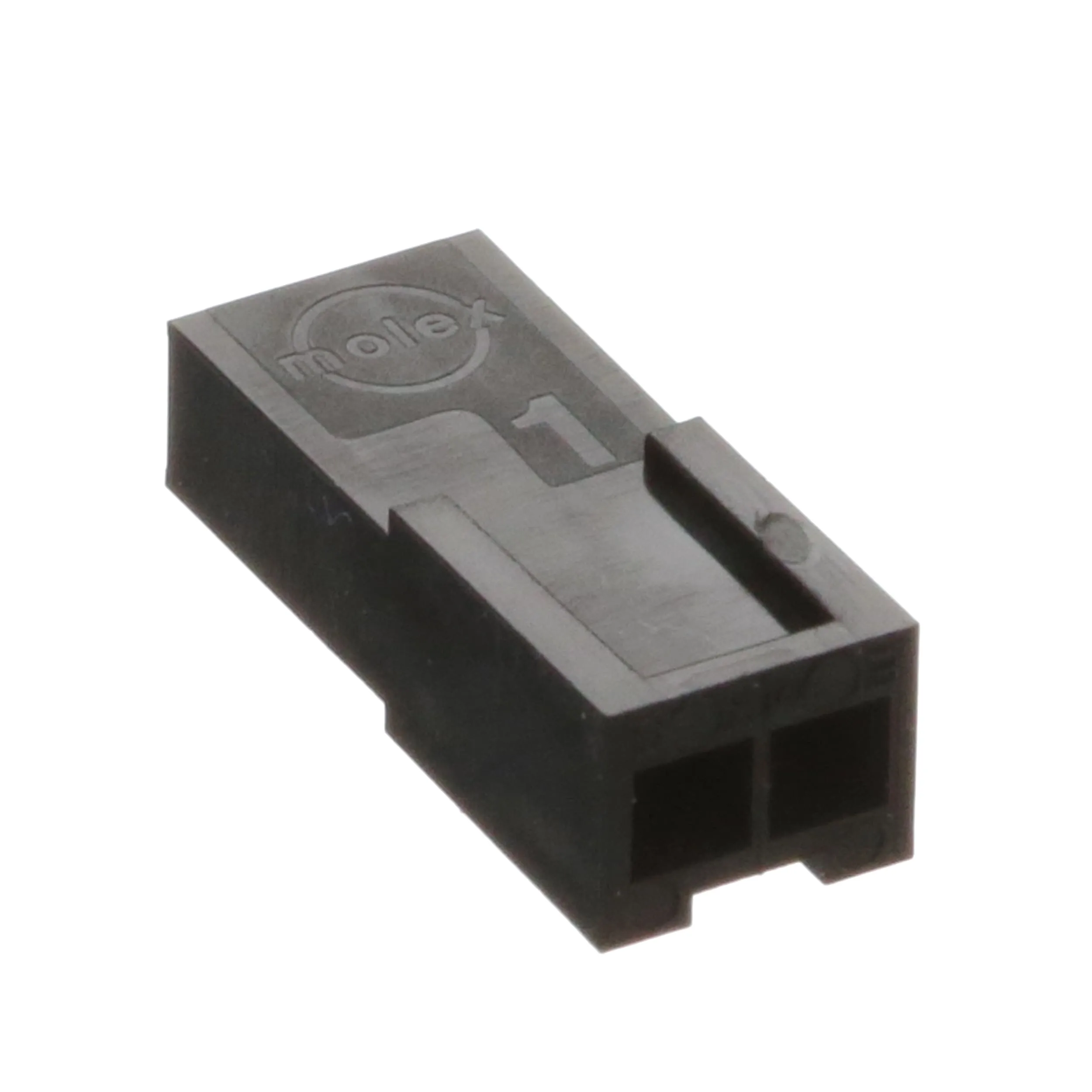

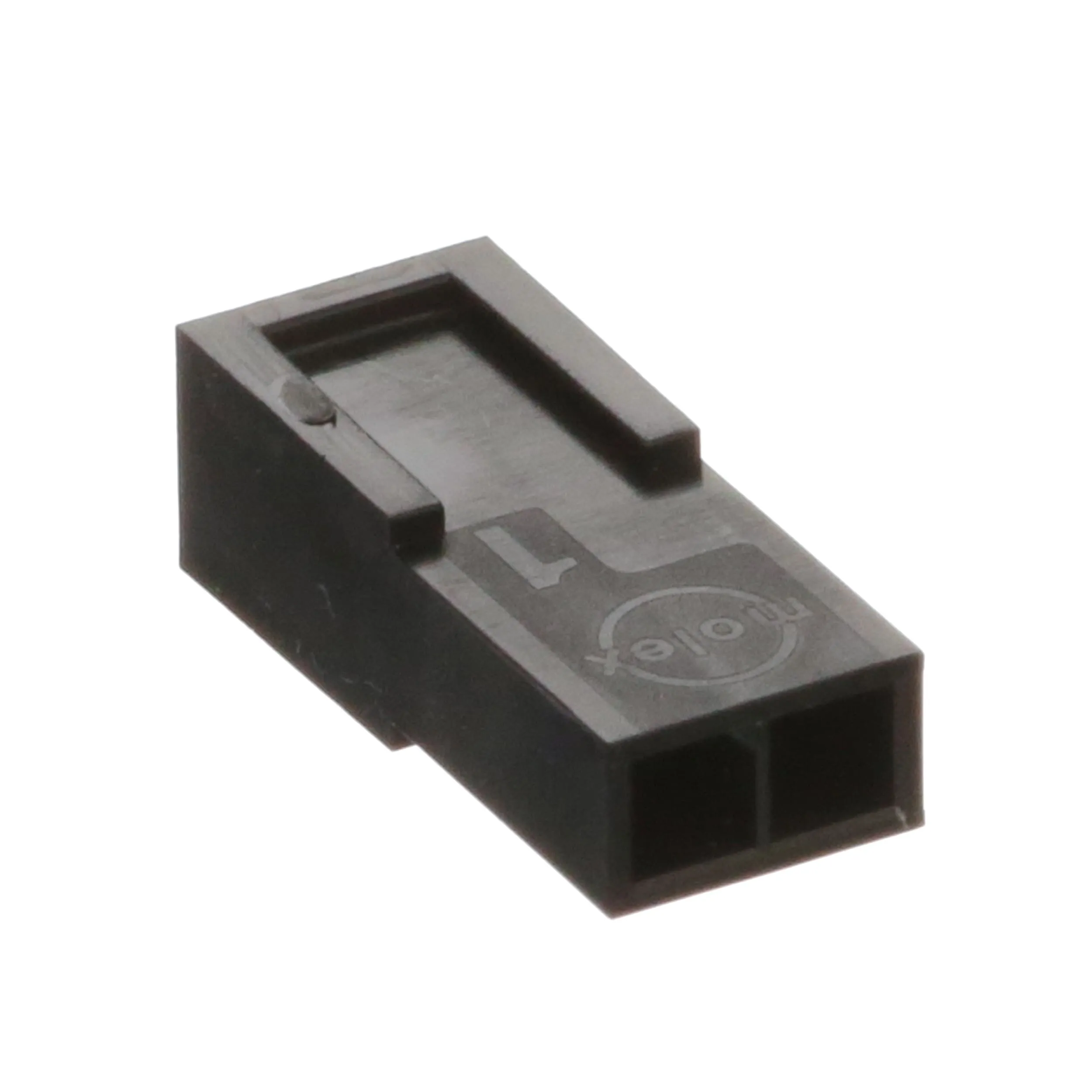

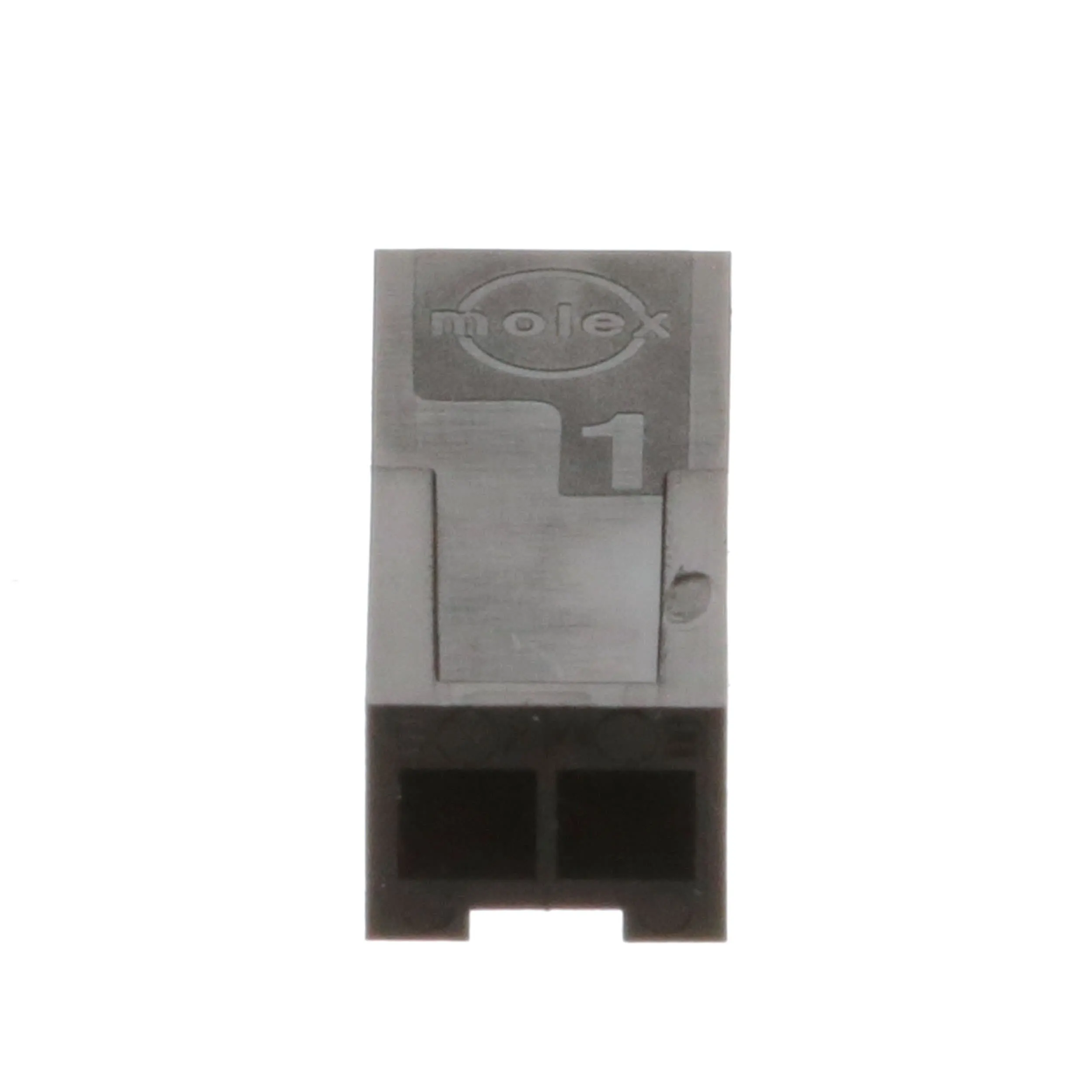

| Product Header | Micro-Fit 3.0™ Wire-to-Wire Plug Housing |
| Series | |
| Special Features | Not Low-Halogen |
| Type | Plug Housing |
Overview
Micro-Fit 3.0™ Connectors
Micro-Fit 3.0™ Connectors are a 3.00mm pitch high-density, low-power connector system available in wire-to-wire and wire-to-board configurations with SMT and through-hole options and up to 5.0A to meet low- to mid-range power application needs. Molex’s Micro-Fit 3.0 Interconnects offer users a low- to mid-range power-distribution solution with the highest current in the smallest footprint available today. Based on a 3.0mm centerline Micro-Fit 3.0 is available in wire-to-wire and wire-to-board configurations, SMT and through-hole processing, 2 to 24 circuits and single- and dual-row versions. Micro-Fit 3.0 Connectors can be purchased in pure tin or one of two thicknesses of select gold to provide costs savings. Contacts are fully isolated on each side of the interface to eliminate potential arcing and incorporate four points of contact for redundancy. The housings utilize positive-lock features to prevent accidental disconnects. Micro-Fit 3.0 Interconnects are UL recognized, CSA approved and TUV licensed. All components are leadfree, RoHS compliant, halogen free and glow wire capable.
